Transceivers
Start from the main technical choices, then refine the list and select the matching module.
Comprehensive Solutions
Lumulus offers a comprehensive portfolio of optical transceivers covering data rates from 155 Mb/s to 1.6 Tb/s, supporting a broad range of enterprise, telecom, AI, and data center applications. Our solutions are available with EEPROM customization, private labeling, and custom product labels to meet OEM and project-specific requirements, combining performance, compatibility, and flexible branding.
Loopback & Converters include essential tools for network testing, validation, and media conversion. Loopback modules enable fast verification of optical interfaces during manufacturing, deployment, and troubleshooting, while media converters provide reliable signal conversion between different transmission media and network interfaces, supporting seamless integration across a wide range of Ethernet and fiber optic applications.
From 30m to 120km
Every module is tested for signal integrity, temperature stability, and host compatibility before it ships.
Select module
Find a transceiver
Search is based on transceivers currently listed in the Lumulus catalog and updated regularly.
Can't find the exact module?
If the catalog search does not return what you need, send your requirements and we will identify the closest option or a custom transceiver path.

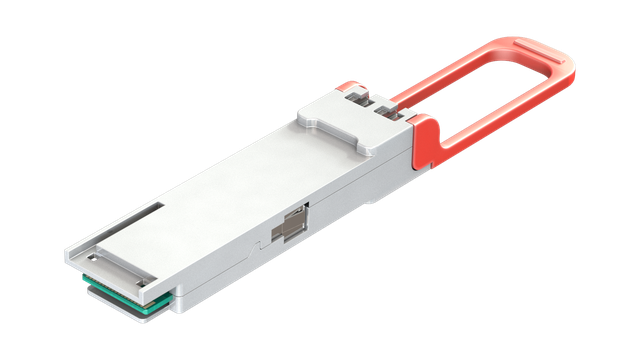

QSFP28 100G 10km 100G QSFP28 LR1 BIDI Transceiver
LBQ0-PP14(41)ELC
Key Features
- Supports 100GBASE-LR1 BIDI
- Lane signaling rate 103.125Gbps~106.25Gb/s with PAM4
- Compatibility with 100G OTU4
- Up to 10Km transmission on SMF
- Single +3.3V power supply
- Compatible with RoHS
- Operating case temperature: 0°C to +70°C (Commercial)
QSFP28 100G 10km 100GBASE-LR4 QSFP28
LLQ0-SLR04LC
Key Features
- Support line rates from 103.125 Gbps to 111.81 Gbps
- Transmission data rate up to25.78and 27.95Gbps（NRZ) per channel
- Up to 10Km transmission on single mode fiber
- High speed I/O electrical interface (CAUI-4)
- Single +3.3V power supply; Dissipation
- Compatible with RoHS
- Operating case temperature: 0°C to +70°C (Commercial)

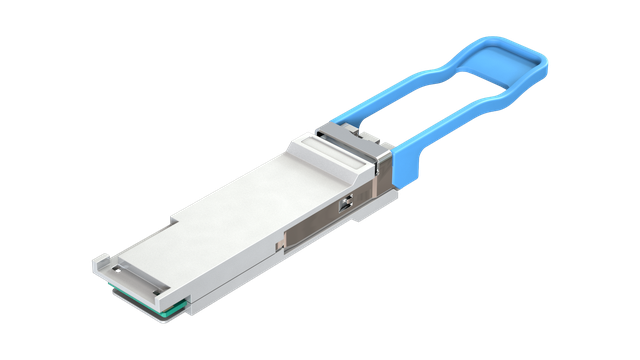

QSFP28 100G 10km 100G QSFP28 LR4 Transceiver
LLQ0-YLR04LC
Key Features
- Supports 103.125Gb/s and 111.81Gb/s aggregate bit rates
- Hot-pluggable QSFP28 MSA form factor
- Duplex LC receptacle optical interface
- Transmitter: cooled 4x28Gb/s DML laser
- Single +3.3V power supply
- Compatible with RoHS
- Operating case temperature: 0°C to +70°C (Commercial)
