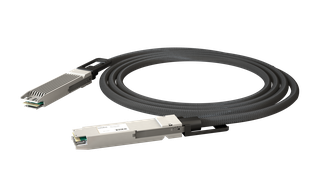

1.6T OSFP to 1.6T OSFP (Redriver)ACC
LFOO-RN1xxxC
Max Reach: 5 meters
OSFP active copper cable (ACC) assemblies integrate redriver technology to condition and re-amplify the signal, providing eight data transmission channels at speeds up to 224 Gbps (PAM4) per channel, for a total bandwidth of 1.6Tbps, and meeting 1.6T Ethernet requirements. Available in 26AWG to 30AWG wire gauges, this active copper cable assembly extends maximum link length up to 5.0m. Unlike passive DAC solutions, the OSFP ACC uses active signal conditioning via a CMIS-compliant management interface, enabling longer reach while maintaining signal integrity at high PAM4 data rates.
Key Features
- Support 8x224G PAM4
- InfiniBand XDR/NDR/HDR/EDR & Ethernet compatible
- Maximum link length up to 5.0m
- Signal Wire Size: 26AWG~30AWG
- Case temperature range: 0°C to 70°C
- 3.3V Power Supply
- RoHS Compliance
- Low power consumption
- Custom colors for pull tab
- Available in LSZH version
Applications
- Data center & Enterprise Storage Systems
- High Performance Computing (HPC)
- Network Interface Cards (NIC's)
- Telecommunication Equipment
Supported Standards
- OSFP MSA
- CMIS 4.0
- IEEE 802.3dj (1.6TBASE-CR8)
Product specification
| P/N | Description | Breakout | Max Reach | Terminal A Data Rate (Gb/s) | Terminal A Package | Terminal B Data Rate (Gb/s) | Terminal B Package | AWG | Temp. Range | Specification sheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LFOO-RN1005C | 1.6T OSFP to 1.6T OSFP ACC | 1:1 | 0.5m | 1600Gb | OSFP | 1600Gb | OSFP | 26 AWG | C | - |
|
LFOO-RN1050C | 1.6T OSFP to 1.6T OSFP ACC | 1:1 | 5m | 1600Gb | OSFP | 1600Gb | OSFP | 30 AWG | C | - |
