100G QSFP28 to 4x25G SFP28 DAC

LEQP-LU4xxxC

Max Reach: 5 meters

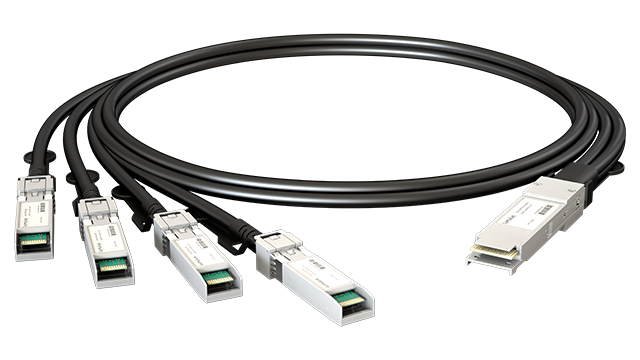

Image of LEQP-LU4xxxC

Key Features

Support 4x25.78125G NRZ
Single Wire Size: 26AWG~30AWG
Maximum power consumption:<0.05W each end
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
BER < 10^-12
RoHS Compliance
InfiniBand EDR compatible

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

SFF 8665 QSFP MSA, SFF-8402 SFP28 MSA
IEEE 802.3bj
IEEE 802.3by

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet

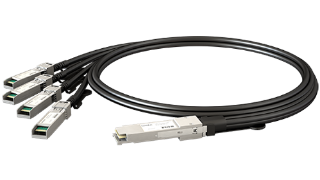

	LEQP-LU4050C	100G QSFP28 to 4x25G SFP28 DAC	1:4	5m	100Gb	QSFP28	25Gb	SFP28	26 AWG	C
	LEQP-LU4035C	100G QSFP28 to 4x25G SFP28 DAC	1:4	3.5m	100Gb	QSFP28	25Gb	SFP28	26 AWG	C
	LEQP-LU4005C	100G QSFP28 to 4x25G SFP28 DAC	1:4	0.5m	100Gb	QSFP28	25Gb	SFP28	30 AWG	C

High-Speed Cable Solutions

DAC cables are high-speed, cost-effective cables that are easy to install and ideal for short-distance direct connections in data centers.

ACC cables are high-speed, cost-effective cables with active amplification that support high-speed connections over longer distances than DACs which are perfect for low-latency environments.

AEC cables combine copper flexibility with active circuits, optimizing connections over extended distances in confined spaces.

AOC cables are high-speed active optical cables that are ideal for long-distance data communications, ensuring low latency and resistance to interference.
