400G QSFP-DD to 4X100G QSFP56 AOC

LAGQ-PK4xxxC

Max Reach: 100 meters

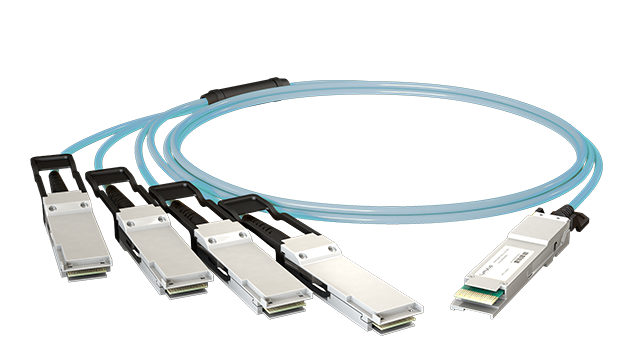

Image of LAGQ-PK4xxxC

Key Features

8x50G PAM4 retimed 400GAUI-8 electrical interface(400G End)
850nm VCSEL array and PIN photo detector array
Single 3.3V power supply
Power dissipation <10W(400G End),<5W(200G End)
Commercial case temperature range of 0°C to 70°C
RoHS compliant
Maximum link length of 60m on OM3 MMF or 100m on OM4/OM5

Applications

400G Ethernet
Data Center

Supported Standards

QSFP-DD MSA
QSFP56 MSA
CMIS 4.0/SFF8636
IEEE 802.3cd

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet

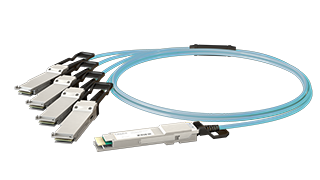

	LAGQ-PK4X10C	400G QSFP-DD to 4x100G QSFP56 AOC	1:4	100m	400Gb	QSFP-DD	100Gb	QSFP56	LSZH MMF	C
	LAGQ-PK4100C	400G QSFP-DD to 4x100G QSFP56 AOC	1:4	10m	400Gb	QSFP-DD	100Gb	QSFP56	LSZH MMF	C
	LAGQ-PK4X10C	400G QSFP-DD to 4x100G QSFP56 AOC	1:4	1m	400Gb	QSFP-DD	100Gb	QSFP56	LSZH MMF	C

High-Speed Cable Solutions

DAC cables are high-speed, cost-effective cables that are easy to install and ideal for short-distance direct connections in data centers.

ACC cables are high-speed, cost-effective cables with active amplification that support high-speed connections over longer distances than DACs which are perfect for low-latency environments.

AEC cables combine copper flexibility with active circuits, optimizing connections over extended distances in confined spaces.

AOC cables are high-speed active optical cables that are ideal for long-distance data communications, ensuring low latency and resistance to interference.
