800G OSFP AEC to 800G OSFP DAC

LNOO-QM1xxxC

Max Reach: 3 meters

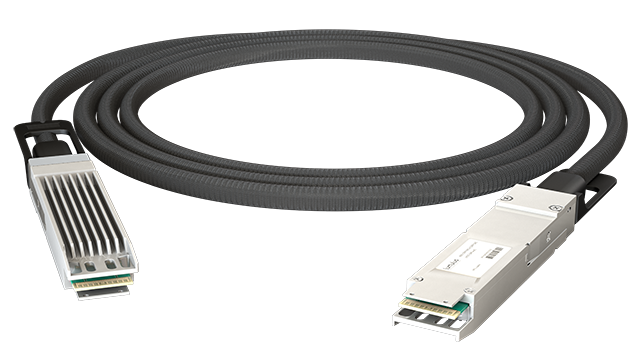

Image of LNOO-QM1xxxC

Key Features

High-performance 8x112 Gb/s PAM4 DSP retimer solution
Support 800G OSFP to 800G OSFP AEC-DAC
Maximum power consumption: 12W (AEC), 1W (DAC)
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
BER < 10^-15 (post FEC)
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

OSFP MSA
CMIS 5.2
IEEE 802.3ck

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LNOO-QM1030C	800G OSFP AEC to 800G OSFP DAC	1:1	3m	800Gb	OSFP	800Gb	OSFP	28 AWG	C
	LNOO-QM1020C	800G OSFP AEC to 800G OSFP DAC	1:1	2m	800Gb	OSFP	800Gb	OSFP	28 AWG	C
	LNOO-QM1010C	800G OSFP AEC to 800G OSFP DAC	1:1	1m	800Gb	OSFP	800Gb	OSFP	30 AWG	C

High-Speed Cable Solutions

DAC cables are high-speed, cost-effective cables that are easy to install and ideal for short-distance direct connections in data centers.

ACC cables are high-speed, cost-effective cables with active amplification that support high-speed connections over longer distances than DACs which are perfect for low-latency environments.

AEC cables combine copper flexibility with active circuits, optimizing connections over extended distances in confined spaces.

AOC cables are high-speed active optical cables that are ideal for long-distance data communications, ensuring low latency and resistance to interference.
