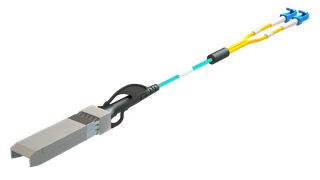

25Gbps SFP28 850nm SR Optical Transceiver

LIPX-UUSxxxC

Max Reach: 100 meters

The Lumulus Immersion SFP28 transceiver is a single-channel, pluggable fiber optic module designed for 25 Gigabit Ethernet and InfiniBand EDR applications. Engineered specifically for reliable operation in liquid immersion environments, it delivers high performance for short-range data communication and interconnect applications at data rates up to 25.78125 Gbps.

The module supports transmission distances of up to 70 m over OM3 multimode fiber and up to 100 m over OM4 multimode fiber using a nominal wavelength of 850nm. It features a standard 20-contact edge connector electrical interface and incorporates high-performance VCSEL technology to provide long-term reliability, consistent performance, and dependable operation in demanding data center environments

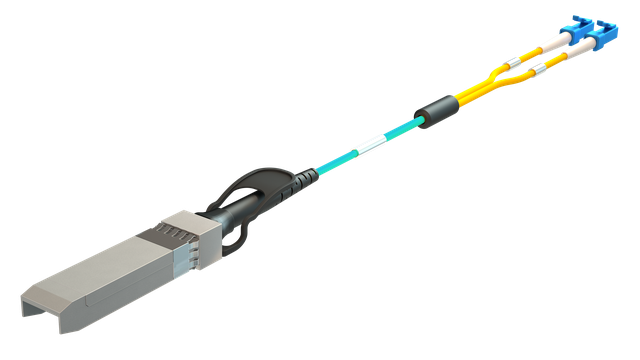

Image of LIPX-UUSxxxC

Key Features

Hot-pluggable SFP28 form factor
Supports 25Gbps data rate
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
850nm VCSEL laser and PIN photo-detector
Internal CDR on both Transmitter and Receiver channel
Optional pigtail type and length
Single 3.3V power supply
Power dissipation < 1W
Digital diagnostics functions are available via theI2C interface
RoHS compliant
Operating case temperature range: 0°C to 60°C

Applications

25GBASE-SR Ethernet
Especially design for liquid immersion environment

Supported Standards

Compliant with SFF-8472 &8431
RoHS compliant (2011/65/EU, lead free)

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet
	LIPX-UUSxxxC	25Gbps SFP28 SR Liquid Immersion Transceiver Module	1:2	100m	25Gb	SFP28	25Gb	MPO/LC/FC	LSZH MMF	C	-
